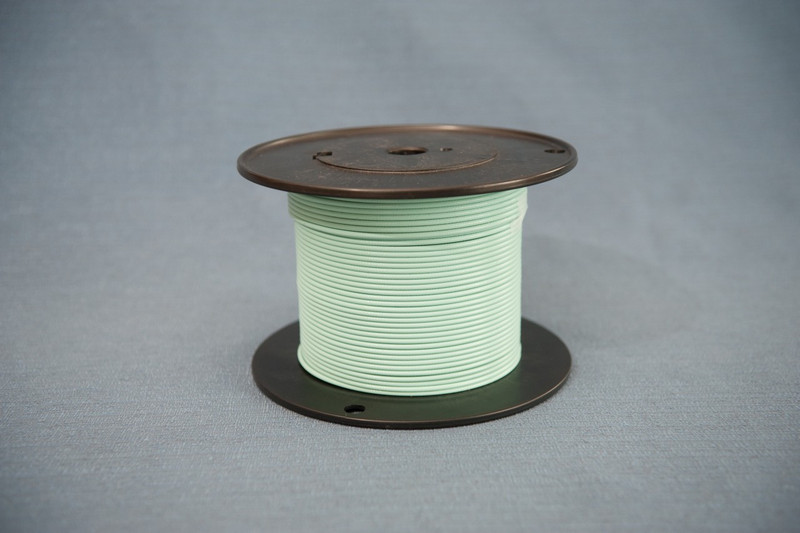

HFE160D
|
|
Flexible Microwave Cable
|
|
MECHANICAL CHARACTERISTICS
|
|
|
| Jacket Diameter, inch (mm) |
0.162 (4.115) |
| Outer Shield Diameter, inch (mm) |
0.140 (3.560) |
| Dielectric Diameter, inch (mm) |
0.120 (3.048) |
| Center Conductor Diameter, inch (mm) |
0.036 (0.914) |
| Minimum Bend Radius, inch (mm) |
0.500 (12.700) |
| Weight, grams/ft. (grams/meter) |
13.180 (43.250) |
|
ELECTRICAL CHARACTERISTICS
|
|
|
| Impedance, ohms |
|
| Frequency Range |
DC-18 |
| Velocity of Propagation |
0.705 |
| Capacitance, pF/ft. (pF/meter) |
29.3 (96.1) |
| Shielding Effectiveness, dB @ 1GHz |
>90dB |
| Maximum Insertion Loss, dB/ ft. (dB/meter) |
Frequency |
Insertion Loss |
0.5 GHz
1.0 GHz
10.0 GHz
18.0 GHz |
0.090 (0.295)
0.120 (0.394)
0.450 (1.476)
0.650 (2.133) |
| Power Handling |
See Graph |
| Maximum Voltage, VRMS |
2000 |
|
ENVIRONMENTAL CHARACTERISTICS
|
|
|
| Temperature Range, Celsius |
-65 to +125 |
|
|
| Outer jacket |
FEP |
| Braid |
SPC Braid |
| Outer Shield |
Silver plated copper tape |
| Dielectric |
PTFE |
| Center Conductor |
Solid SPCW |
|
|
 |
 |
 |
